Orbital Wrappers

Click Here To Request A Quote

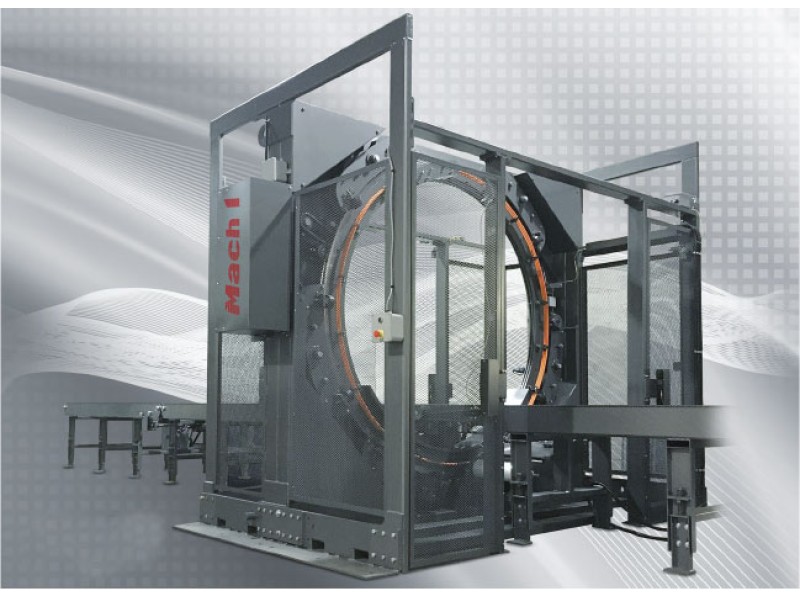

The Galaxy highly advanced orbital automatic stretch wrap systems are custom built for your specific application with endless possibilities. Unique technological solutions allow unmatched high speed wrapping of various size loads. Each project is independently evaluated and quoted to surpass your expectations.

RING FEATURES

• Ring diameter range : 24’’ to 90’’ I/D
• Ring speed adjustable up to 80 RPM
• Solid steel ring with severe duty no maintenance support casters
• Chain driven ring allows ultra quick acceleration and braking for greater throughput

MAIN FEATURES

• Touch screen HMI with custom range of wrap pattern settings
• Fully automatic film clamp and cutting
• Uses standard 20’’ machine stretch film.
• X-Stretch film dispenser with pre-stretch up to 250%
• Available load side guides and hold down
• Load size range up to 60’’ wide x 60’’ high

CONVEYOR OPTIONS

• Fully automatic load detection and sequencing
• All frame components are heavy duty structural steel
• Custom made conveyors for loads up to 5,000 lbs
• Endless conveyor configurations including wrap zone motorized bridge
• Variable conveyor speeds
